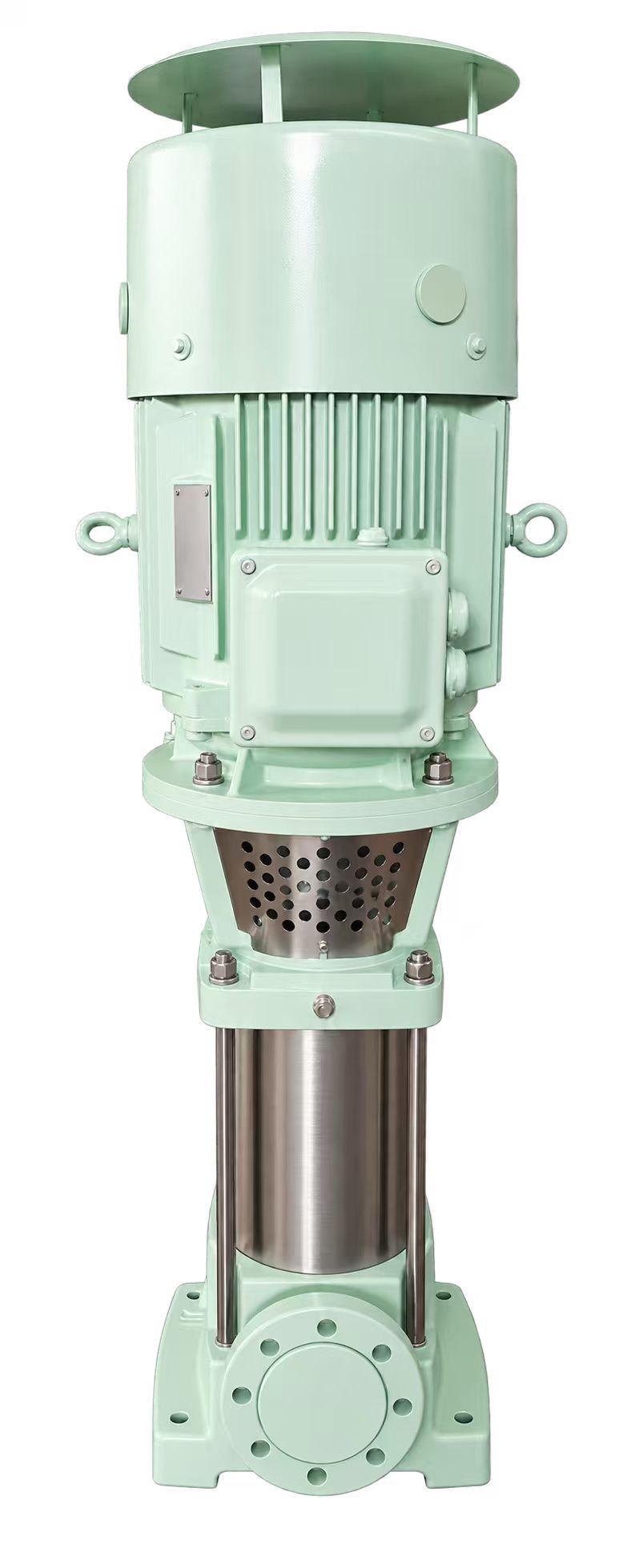

• JIEGUAN DL30-270 marine vertical multistage centrifugal pump
1 1

Lumeapump DL30-270 Series Marine Vertical Multistage Centrifugal Pump

Lumeapump DL30-270 Series Marine Vertical Multistage Centrifugal Pump

The LumeaPump DL30-270 Series is a marine vertical multistage centrifugal pump for freshwater and seawater duties. Specify your required flow, head and operating conditions so the pump configuration can be confirmed for your project.

Price available upon request.

View full details

Product overview

The LumeaPump DL30-270 Series is a marine vertical multistage centrifugal pump for freshwater and seawater duties. Specify your required flow, head and operating conditions so the pump configuration can be confirmed for your project.

Marine water transfer with a vertical multistage design

This series uses vertical installation and is specified for freshwater and seawater service. The supplied series data lists nominal diameters from 25 to 100 mm, flow rates up to 200 m³/h and pressures up to 27 bar.

For seawater service, confirm the wetted materials, seals and operating conditions before selection. Material grades and the exact DL30-270 duty point are to be confirmed with the quotation.

Select the configuration for your vessel

Standard and EX motor options are listed in the supplied data, with 50–60 Hz frequency coverage. Please specify voltage, frequency and any hazardous-area requirements so the appropriate motor and supporting documentation can be confirmed.

Selection note: The published values are supplier-provided series limits. Maximum flow, pressure and temperature are not a single guaranteed operating point. Request a model-specific performance curve and motor details for the required duty.

Request a project quotation

Send the required flow rate and head, liquid and temperature, electrical supply, installation dimensions, quantity, destination and any class or certification requirements. Pricing is available upon request.

Key Features

Vertical multistage centrifugal construction for marine water-transfer duties.

Freshwater and seawater service listed in the supplied specifications; wetted materials and seals require confirmation for the actual liquid.

Nominal diameter range of 25–100 mm across the supplied series data.

Standard and EX motor options, with 50–60 Hz frequency coverage; selected motor details require confirmation.

Technical Specifications

Brand / series: JIEGUAN DL30-270

Pump type: Marine vertical multistage centrifugal pump

Nominal diameter: 25–100 mm

Flow rate: Up to 200 m³/h

Pressure: Up to 27 bar

Temperature: Up to 120 °C

Pumped liquid: Freshwater / seawater

Installation: Vertical

Frequency: 50–60 Hz

Motor options: Standard and EX motors; exact configuration to be confirmed

Design service life: 20 years (supplier-stated design target; not a warranty or guaranteed service life)

Supplier-provided series limits. The actual DL30-270 duty point, materials, motor power and voltage must be confirmed for the selected configuration. Maximum values are not necessarily available together.

Minimum Order Quantity (MOQ)

Please specify the required quantity. Minimum order quantity and availability will be confirmed for the selected configuration in the quotation.

OEM & ODM Manufacturing

Send drawings, connection dimensions and any configuration or branding requirements for review. Customization availability must be confirmed before ordering.

Shipping Information

Send the destination country or port and required delivery date. Packaging, shipping method, lead time and freight costs will be confirmed in the quotation.

Warranty

Request the applicable warranty terms with the quotation. The supplier-stated 20-year design service life is a design target, not a warranty period or guaranteed service life.

Certifications

Specify the required marine classification society, certificate scope and any EX motor requirements. Approval status and supporting documents for the selected model must be confirmed before ordering. No specific class or hazardous-area certification is claimed in the supplied specifications.
