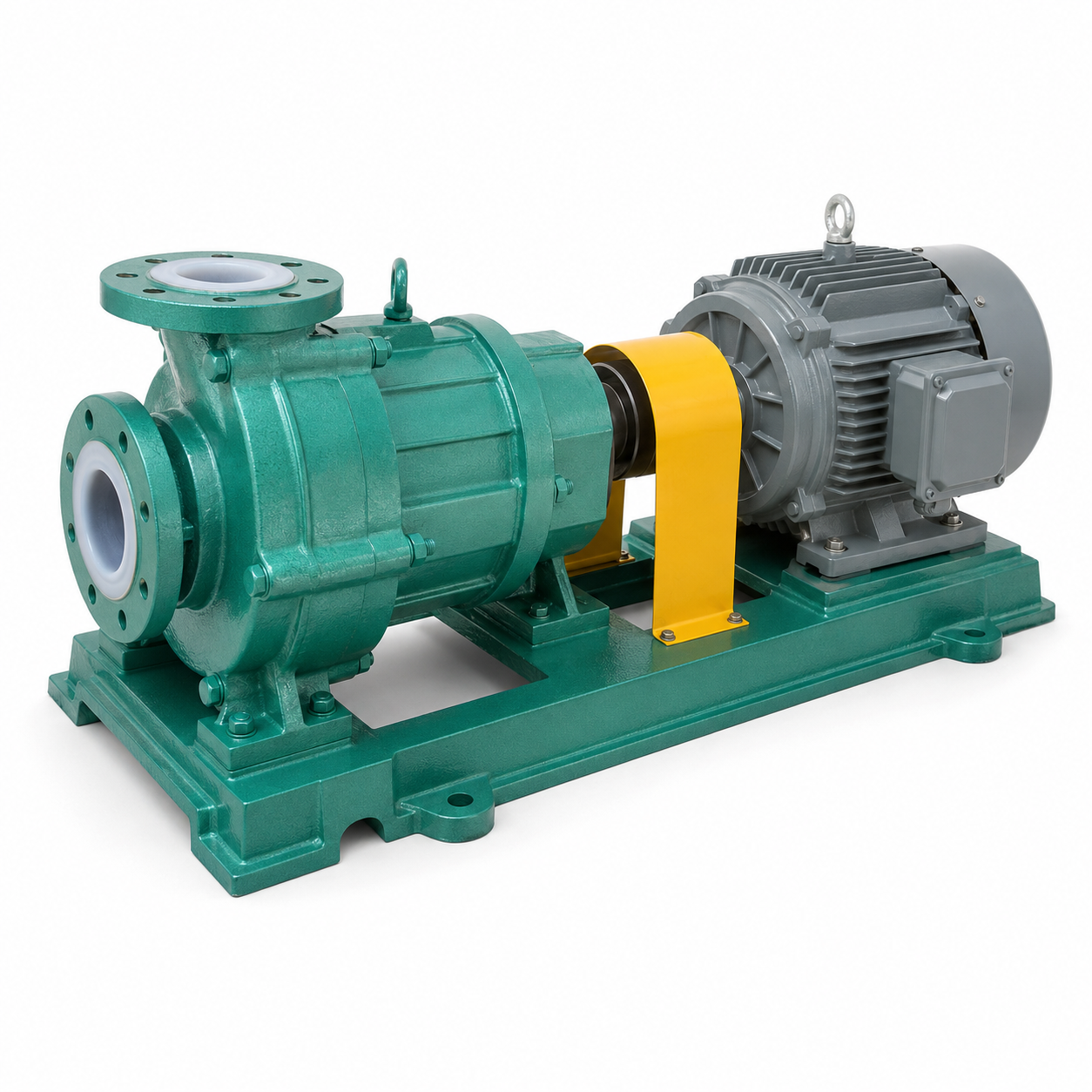

IHF Fluoroplastic Lined Chemical Centrifugal Pump

• Fluoroplastic (F46) lined pump casing
• Excellent corrosion resistance
• High wear resistance
• High-temperature resistance
• Strong mechanical strength
• Reliable external bellows mechanical seal
• Stable and low-noise operation
• Long service life
• Suitable for highly corrosive chemicals
• Designed for continuous industrial operation

Pump Type: Horizontal Single-Stage Single-Suction Fluoroplastic Chemical Centrifugal Pump

Flow Rate:
1.75–200 m³/h

Head:
4.5–87 m

Motor Power:
0.55–110 kW

Speed:
1450 / 2900 r/min

Maximum Working Pressure:
1.6 MPa

Temperature Range:
-85°C to 200°C

Inlet Diameter:
50–200 mm

Seal Type:
External Bellows Mechanical Seal

Pump Casing:
Metal Shell with FEP (F46) Fluoroplastic Lining

Suitable Media:
Sulfuric acid
Hydrochloric acid
Nitric acid
Acetic acid
Hydrofluoric acid
Aqua regia
Strong alkalis
Strong oxidizing agents
Organic solvents
Highly corrosive industrial liquids

Standard MOQ: 1 unit.

MOQ may vary depending on the selected model, motor specification, materials, customization requirements, and destination market.

Please contact our sales team for confirmation and a detailed quotation.

OEM and ODM services are available for distributors, engineering companies, contractors, and private-label customers.

Available customization may include:

• Brand name and product labeling
• Nameplate and packaging design
• Motor voltage and frequency
• Pump materials and sealing configuration
• Connection dimensions
• Product documentation and manuals
• Export packaging requirements

Customization availability depends on the selected model and order quantity. Please provide your technical requirements when requesting a quotation.

Worldwide shipping is available by sea, air, rail, or international express service.

Standard export packaging may include reinforced cartons, plywood cases, pallets, or other protective packaging according to the product size and shipping method.

Production and delivery times depend on the selected model, quantity, motor configuration, customization requirements, and destination.

Please provide your destination port or complete delivery address to receive an accurate freight quotation.

Worldwide shipping is available by sea, air, rail, or international express service.

Standard export packaging may include reinforced cartons, plywood cases, pallets, or other protective packaging according to the product size and shipping method.

Production and delivery times depend on the selected model, quantity, motor configuration, customization requirements, and destination.

Please provide your destination port or complete delivery address to receive an accurate freight quotation.

The IHF Fluoroplastic Chemical Pump is manufactured using advanced fluoroplastic lining technology and precision engineering for highly corrosive industrial applications.

Material certificates, inspection reports, and additional compliance documentation are available depending on the selected model and project requirements.

Please contact our sales team for certification requirements such as CE documentation, ISO factory certificates, or third-party inspections.
