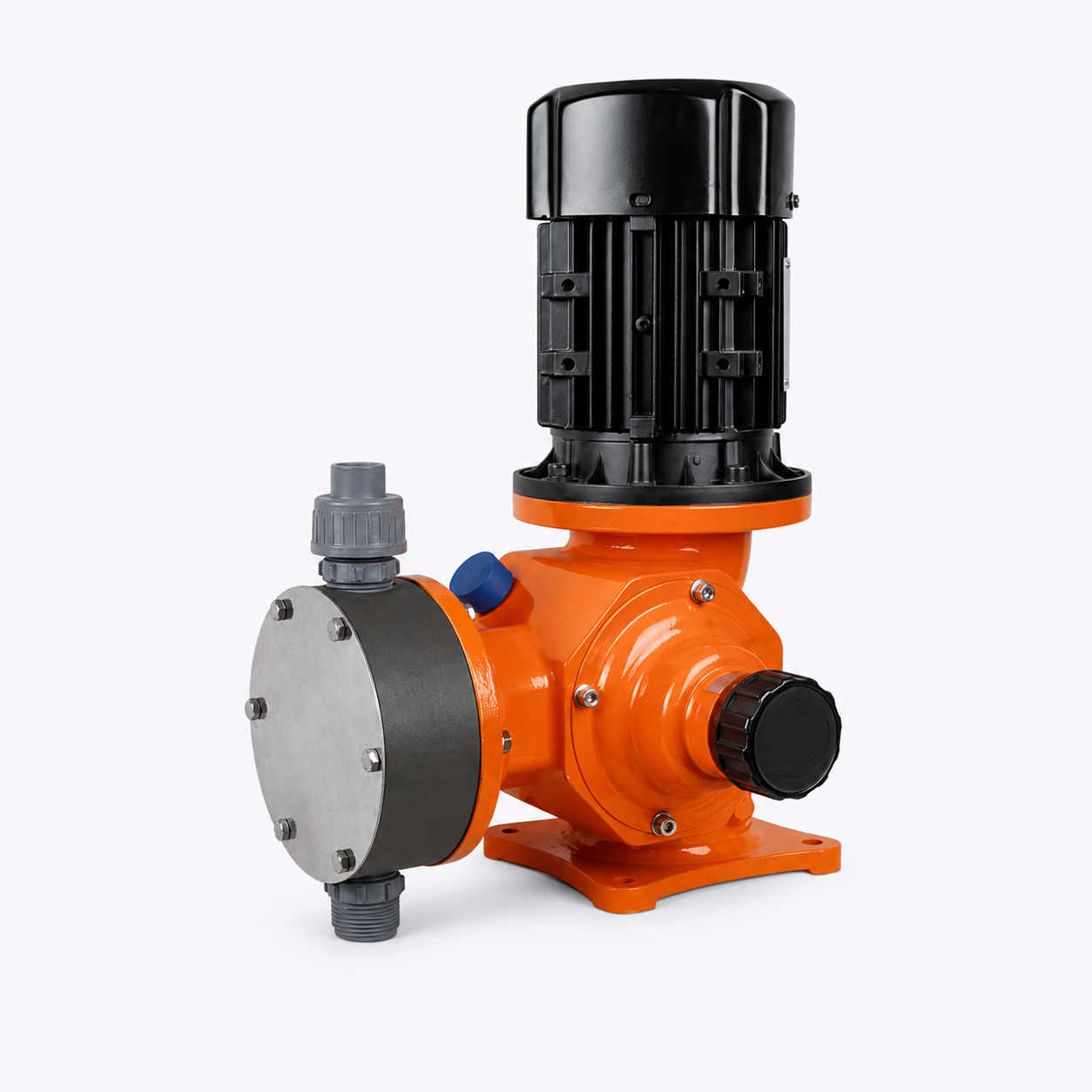

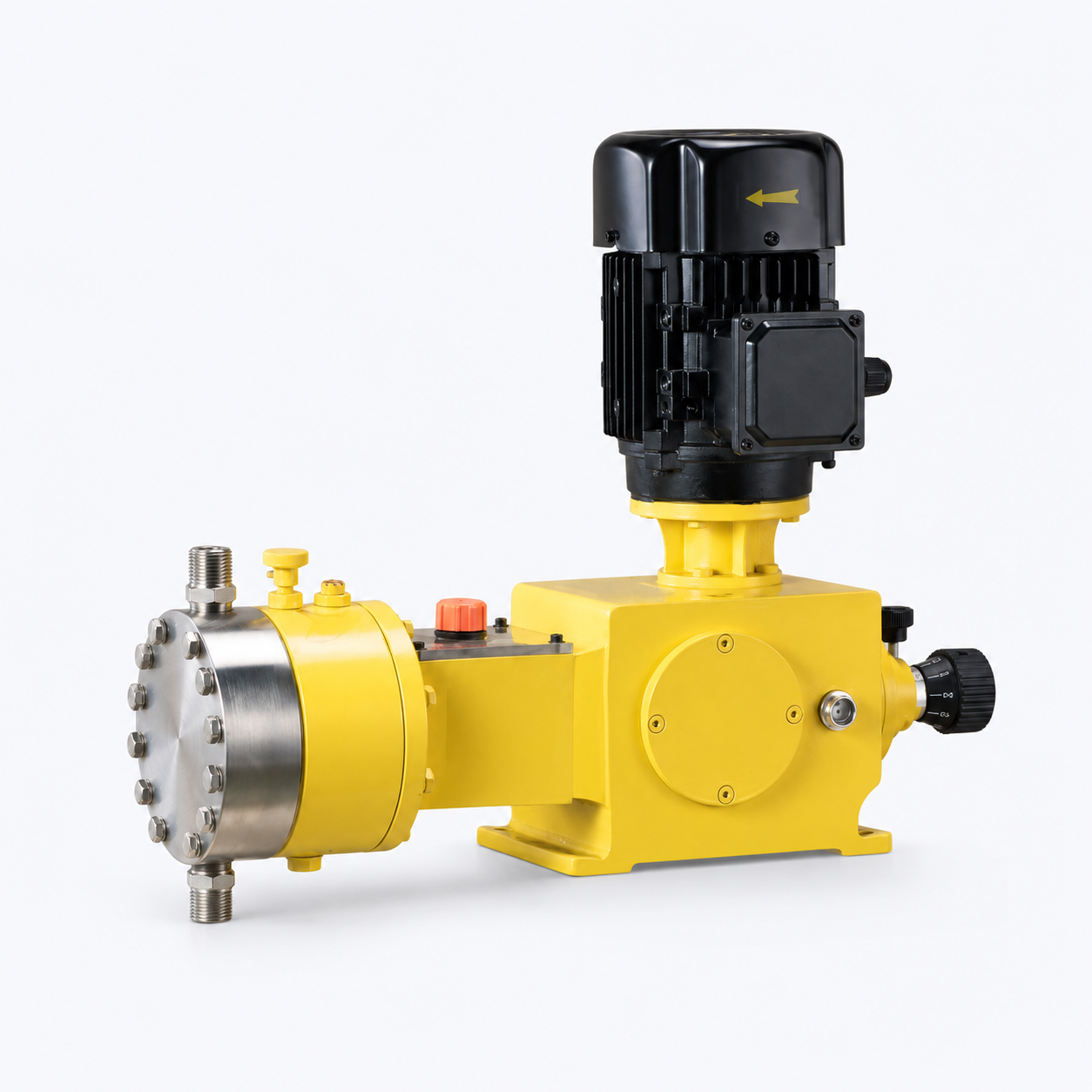

GB Mechanical Diaphragm Metering Pump
GB Mechanical Diaphragm Metering Pump
Product Overview
The LumeaPump GB Series Mechanical Diaphragm Metering Pump is designed for accurate and reliable dosing, metering, and chemical transfer applications.
The pump operates through the reciprocating movement of a diaphragm, which changes the volume of the pump chamber while one-way valves control the direction of liquid flow. This design provides reliable metering performance while keeping the pumped medium isolated from the mechanical drive components.
Compared with conventional plunger metering pumps, the diaphragm design provides excellent sealing performance and virtually leak-free operation, making the GB Series particularly suitable for handling chemicals, acids, alkalis, treatment agents, and other process liquids.
The GB Series features a lightweight cast-aluminum housing, durable transmission mechanism, adjustable flow control, and multiple liquid-end material options including PVC, PTFE, SUS304, and SUS316.
With capacities up to 1800 L/h and operating pressures up to 0.6 MPa, the GB Series provides a practical and cost-effective solution for water treatment, chemical dosing, industrial processing, and general metering applications.
Applications
The GB Series is suitable for a wide range of dosing and liquid metering applications, including:
- Water and wastewater treatment
- Chemical dosing systems
- Acid and alkali dosing
- Petrochemical processing
- Chemical manufacturing
- Power generation facilities
- Metallurgical processes
- Mining operations
- Shipbuilding and marine applications
- Agricultural chemical dosing
- Light industrial processing
- Industrial process water treatment
- Chemical preparation and injection systems
- Equipment and production-line dosing systems
Key Features
Key Features
- Mechanical diaphragm metering design
- Metering capacity up to 1800 L/h
- Maximum operating pressure up to 0.6 MPa
- Excellent sealing and leak-resistant operation
- Adjustable flow during operation or while stopped
- Manual or automatic flow control available
- Supports 4–20 mA control signal for automatic flow adjustment
- Lightweight cast-aluminum housing with good heat dissipation
- Eccentric crank mechanism for reliable flow adjustment
- Multi-layer reinforced diaphragm construction
- PVC, PTFE, SUS304 and SUS316 pump head options
- Standard or explosion-proof motor options
- Suitable for corrosive liquids depending on selected wetted materials
- Cost-effective design for low-to-medium pressure dosing applications
Technical Specifications
Technical Specifications
Metering Range: 0–1800 L/h;
Pressure Range: 0–0.6 MPa;
Drive: Electric Motor;
Control: Manual or Automatic with 4–20 mA signal;
Motor Power: 0.75 / 1.1 / 1.5 kW;
Pump Head Materials: PVC / PTFE / SUS304 / SUS316;
Valve Materials: PVC / PTFE / SUS304 / SUS316;
Valve Ball: Silica / SUS304 / SUS316 / Ceramic;
Seal Materials: PTFE / PVC;
Motor Options: Single-phase, Three-phase or Explosion-proof;
Protection Rating: IP54.
Minimum Order Quantity (MOQ)
Minimum Order Quantity (MOQ)
Standard MOQ: 1 unit.
MOQ may vary depending on the selected model, motor specification, materials, customization requirements, and destination market.
Please contact our sales team for confirmation and a detailed quotation.
OEM & ODM Manufacturing
OEM & ODM Manufacturing
OEM and ODM services are available for distributors, engineering companies, contractors, and private-label customers.
Available customization may include:
• Brand name and product labeling
• Nameplate and packaging design
• Motor voltage and frequency
• Pump materials and sealing configuration
• Connection dimensions
• Product documentation and manuals
• Export packaging requirements
Customization availability depends on the selected model and order quantity. Please provide your technical requirements when requesting a quotation.
Shipping Information
Shipping Information
Worldwide shipping is available by sea, air, rail, or international express service.
Standard export packaging may include reinforced cartons, plywood cases, pallets, or other protective packaging according to the product size and shipping method.
Production and delivery times depend on the selected model, quantity, motor configuration, customization requirements, and destination.
Please provide your destination port or complete delivery address to receive an accurate freight quotation.
Warranty
Warranty
Worldwide shipping is available by sea, air, rail, or international express service.
Standard export packaging may include reinforced cartons, plywood cases, pallets, or other protective packaging according to the product size and shipping method.
Production and delivery times depend on the selected model, quantity, motor configuration, customization requirements, and destination.
Please provide your destination port or complete delivery address to receive an accurate freight quotation.
Certifications
Certifications
CE documentation, ISO manufacturing certificates, inspection reports, and OEM customization are available upon request based on project requirements.
- CE & ISO Certified
- Worldwide Shipping
- OEM & ODM Available
