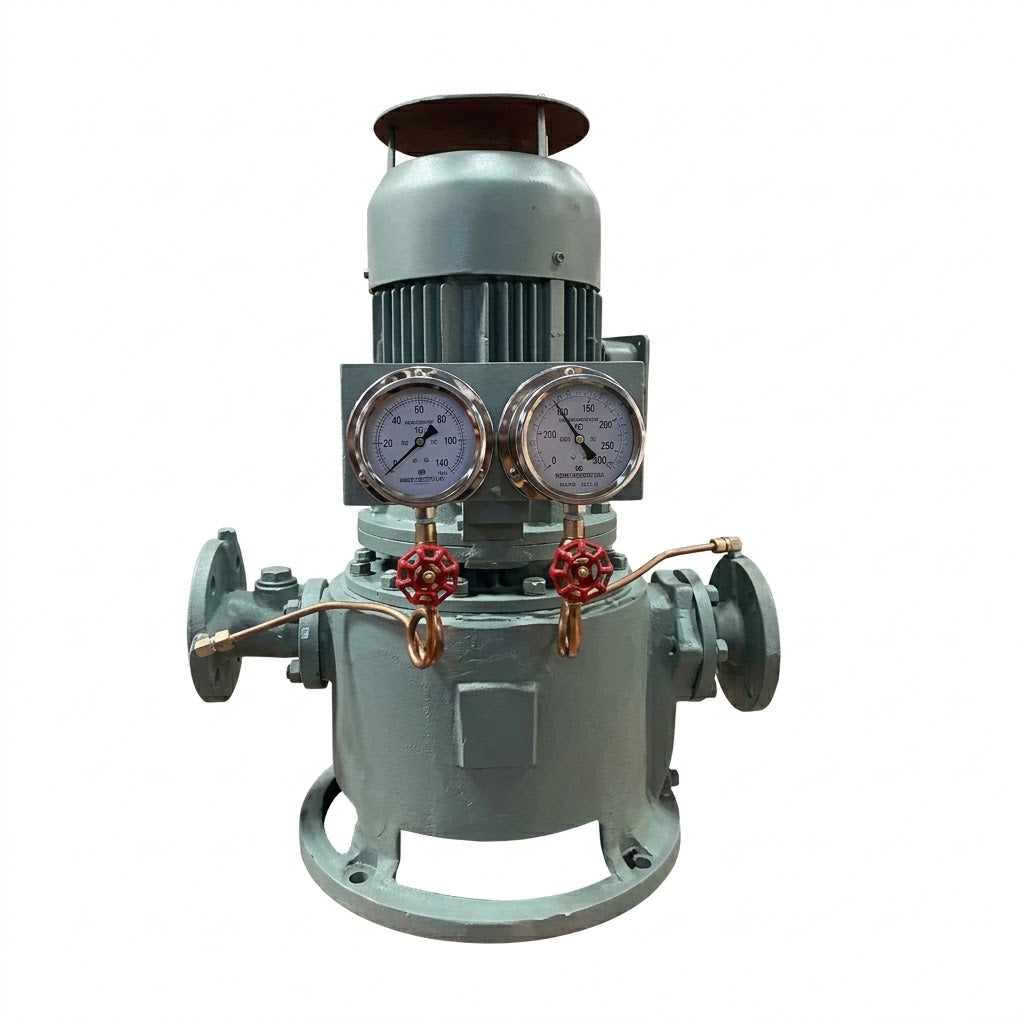

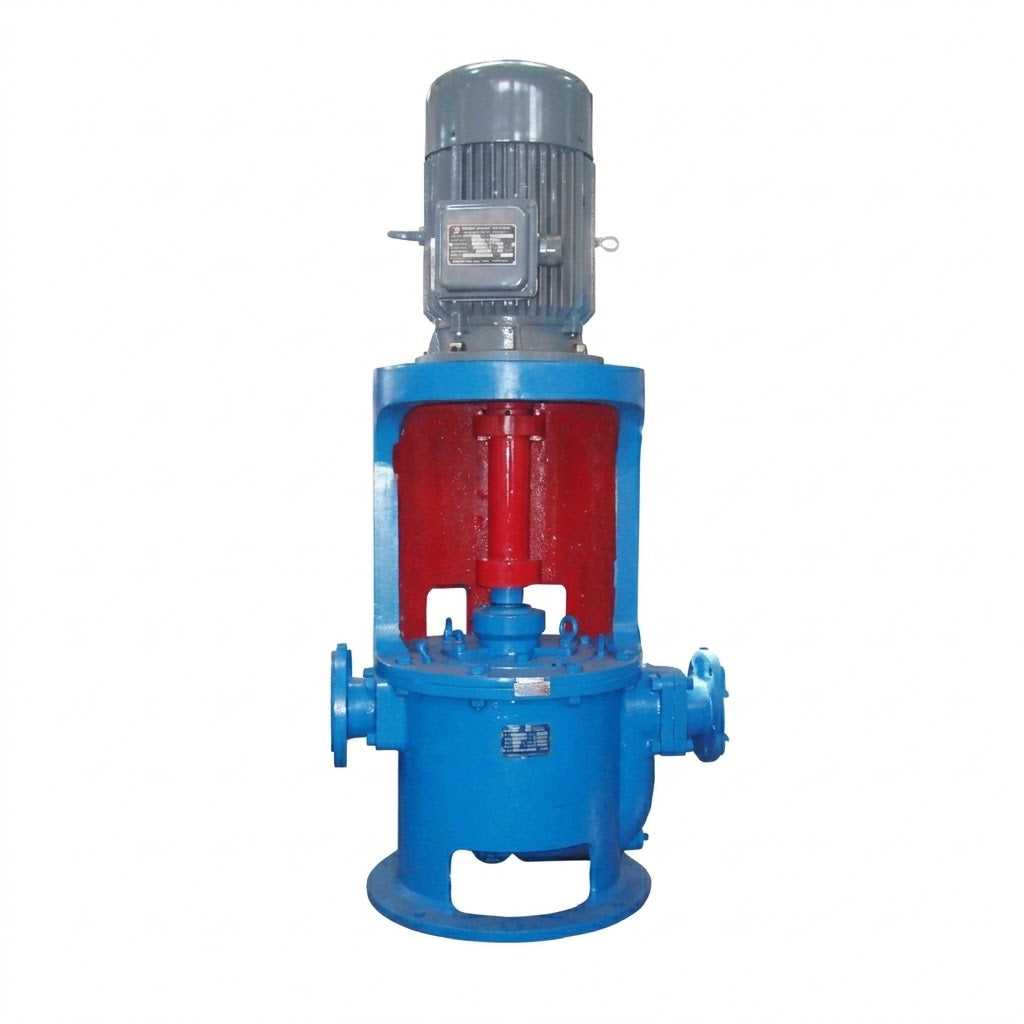

CLZ Marine Vertical Self-Priming Centrifugal Pump

Marine vertical self-priming design: Suitable for shipboard applications requiring reliable priming and compact installation.

Bilge and ballast service: The catalog explicitly lists ship ballast and bilge pumping as primary applications.

Cooling-water circulation: Designed for marine cooling-water service.

Fire-fighting applications: The catalog includes fire-fighting duty among its intended uses.

Freshwater and seawater transfer: Suitable for seawater, freshwater, and other non-corrosive liquids.

Maintenance-friendly structure: Designed for convenient inspection and servicing of major internal components.

Pump Type: Vertical self-priming centrifugal pump
Flow Rate: 2–670 m³/h
Head: 12–128 m
Required Power: 1.5–55 kW
Speed: 1450 / 2900 r/min
NPSH(r): 3.5–6.0 m
Inlet / Outlet Diameter: Model-dependent
Medium: Seawater, freshwater, other non-corrosive liquidsLiquid Temperature: ≤ 80°C

MOQ may vary depending on the selected model, motor specification, materials, customization requirements, and destination market.

Please contact our sales team for confirmation and a detailed quotation.

OEM and replacement impeller requirements supported according to QW pump model, drawings, dimensions or supplied samples.

Export packaging and international shipping available. Shipping method and delivery time depend on impeller size, order quantity and destination.

Export packaging and international shipping available. Shipping method and delivery time depend on impeller size, order quantity and destination.

Classification and certification options depend on the selected configuration and project requirements. Please specify the required class society or certification scope when requesting a quotation.
