Why You Shouldn’t Compare Solar Irrigation Systems by Pump Price Alone
When comparing solar irrigation systems, it is tempting to start with one simple question:
“How much is the pump?”
Pump price is important, but it should not be the only factor in your decision.
A solar irrigation system is not just a water pump. It is a complete system in which the pump, solar panels, controller, pipeline and water demand must work together.
A cheaper pump may require more energy, operate inefficiently at your required duty point, or fail to deliver enough water.
In some cases, saving money on the pump can actually increase the total cost of the project.
This guide explains what you should compare before purchasing a solar irrigation system.

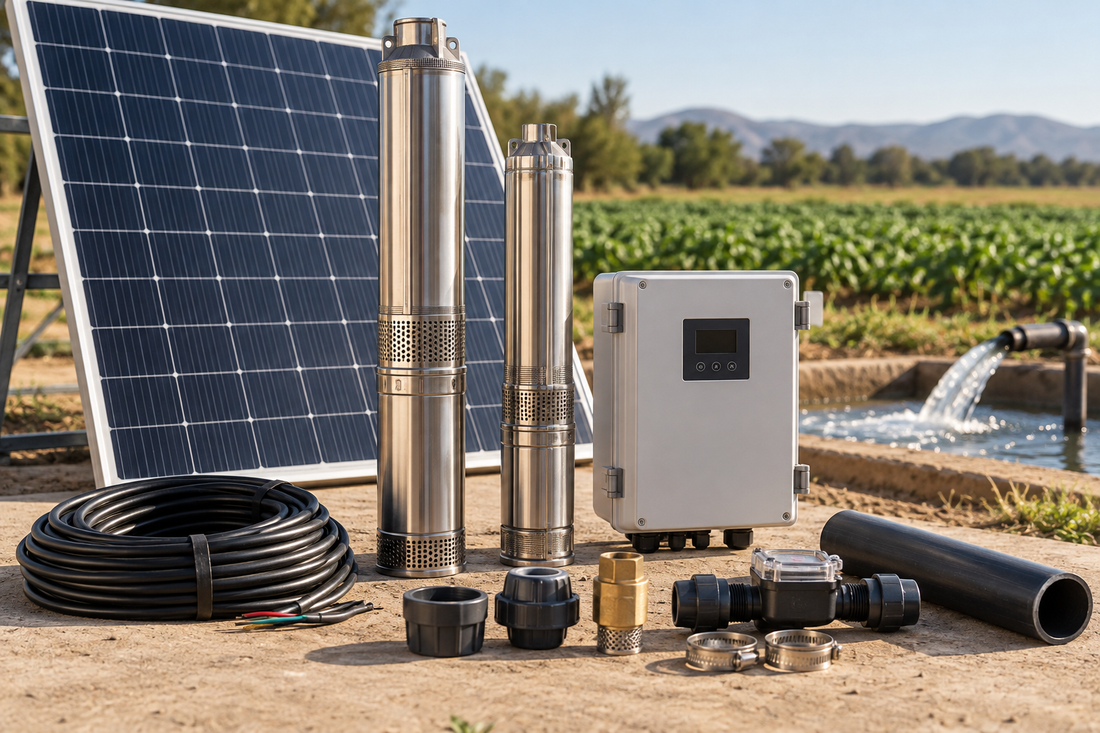

A Solar Irrigation System Is More Than a Pump
A typical solar irrigation system may include:
- Water pump
- Pump motor
- Solar panels
- Solar pump controller or inverter
- Solar mounting structure
- Electrical cables
- Water level sensors
- Protection devices
- Pipes
- Valves
- Flow meter
- Water storage tank or reservoir
- Irrigation equipment
All of these components affect system performance.
For example, selecting a low-cost pump without checking its efficiency may require a larger solar array.
Likewise, using undersized pipes can increase friction losses and force the pump to operate at a higher head.
The correct question is therefore not:
“Which pump is cheapest?”
A better question is:
“Which complete system can deliver the required water reliably at the lowest reasonable total cost?”
What belongs in a complete quotation?
Compare Water Output at the Required Head
One of the biggest mistakes in pump purchasing is comparing maximum flow rates.
Imagine two pumps:
Pump A: Maximum flow 30 m³/h
Pump B: Maximum flow 25 m³/h
At first glance, Pump A appears better.
But what happens if your irrigation system requires:
20 m³/h at 45 meters total head?
Pump A may deliver only 14 m³/h at 45 meters, while Pump B may be designed to deliver approximately 20 m³/h at that operating point.
In that situation, Pump B could be the better choice even though its advertised maximum flow is lower.
This is why buyers should compare the pump performance curve at the actual required duty point, rather than comparing maximum specifications alone.
Flow and Head Must Be Considered Together
Every irrigation project has a required operating point.
It consists primarily of:
Required Flow + Total Dynamic Head
Flow tells you how much water is required.
Head tells you how much resistance the pump must overcome.
Total Dynamic Head may include:
- Vertical lifting height
- Dynamic groundwater level
- Elevation difference
- Required irrigation pressure
- Pipeline friction
- Valves and fittings
- Filtration equipment
A pump that delivers excellent flow at 10 meters of head may perform very differently at 50 meters.
Therefore, comparing pump prices without comparing performance at the required head can be misleading.
A Cheaper Pump May Require More Solar Panels
The pump and solar array are directly connected from a system-design perspective.
If one pump requires more electrical power to achieve the same hydraulic output, the solar system may need additional PV capacity.
That means the buyer is not only paying for the pump.
Additional costs may include:
- More solar panels
- Larger mounting structures
- More cables
- Higher-capacity controllers
- Additional installation work
For commercial agricultural projects, these differences can become significant.
This is why pump efficiency should be considered as part of the total solar system cost.
Pipe Size Can Change the Economics of the Entire System
The pipeline is another frequently overlooked part of a solar irrigation project.
Suppose a farm requires a relatively high flow rate over a long distance.
If the pipe diameter is too small, friction losses increase.
Higher friction means the pump must produce more head.
More required head can mean:
- A larger pump
- Higher motor power
- More solar panels
- A larger controller
- Higher operating pressure
Sometimes increasing the pipe diameter can reduce system resistance enough to allow a more efficient pump selection.
So when comparing quotations, check whether suppliers have calculated the pipeline correctly.
A low quotation based on unrealistic pipe losses may become expensive once the system is installed.
Compare Daily Water Delivery, Not Just Motor Power
Farmers ultimately need water, not kilowatts.
Suppose two systems both use a 4 kW pump.
That does not mean they will deliver the same amount of water.
Actual water delivery depends on:
- Pump efficiency
- Pump curve
- Total head
- Solar radiation
- Controller performance
- Pipeline losses
- Available pumping hours
For agricultural irrigation, one of the most useful performance questions is:
How many cubic meters of water can the system realistically deliver per day under the expected site conditions?
This connects the equipment directly to the farm's irrigation requirement.
Solar Panel Quantity Should Not Be Compared in Isolation
Another common comparison is:
“Supplier A uses 10 panels, but Supplier B uses 12. Why?”
More panels do not automatically mean the system is better or worse.
The correct PV configuration depends on:
- Solar panel wattage
- Panel voltage
- Pump motor
- Controller input range
- Required operating voltage
- Local solar conditions
- Temperature
- System losses
- Required pumping hours
For example, twelve lower-wattage panels may provide less total power than ten higher-wattage panels.
Voltage configuration is also important.
A system may have sufficient total wattage but still be incorrectly configured for the controller's operating voltage range.
Always compare the complete PV configuration rather than panel quantity alone.
The Controller Is an Important Part of the System
The solar pump controller or inverter is sometimes treated as a minor accessory.
It should not be.
Depending on the system, the controller can provide important functions such as:
- MPPT operation
- Motor control
- Dry-run protection
- Overload protection
- Overvoltage protection
- Undervoltage protection
- Low-water protection
- Tank-level control
- Fault monitoring
Some projects may also require:
- Remote monitoring
- Hybrid solar/grid operation
- Generator backup
- Communication interfaces
A very cheap quotation may use a basic controller with fewer functions.
Therefore, buyers should compare controller specifications as well as pump specifications.
Protection Against Dry Running Matters
For borehole irrigation systems, groundwater levels can change.
If the water level falls below the pump intake, the pump may operate without sufficient water.
Dry running can damage certain pumps or motors.
A properly designed solar pumping system should consider:
- Low-water sensors
- Dry-run protection
- Automatic restart logic
- Borehole yield
- Dynamic water level
The cost of appropriate protection can be small compared with the cost of replacing a damaged pump.
Material Selection Affects Service Life
Two pumps with similar hydraulic performance can have different materials.
Depending on the water quality, buyers may need to compare:
- Pump casing material
- Impeller material
- Shaft material
- Mechanical seal
- Fasteners
- Motor construction
Clean freshwater irrigation and corrosive or sandy water applications may require different materials.
The cheapest material is not always the most economical choice over the complete service life of the system.
Maintenance and Spare Parts Should Be Included in the Comparison
Solar irrigation projects are often installed in rural or remote areas.
A pump failure during an important irrigation period can be much more expensive than the difference between two pump quotations.
Before buying, ask:
- Are spare parts available?
- Can the mechanical seal be replaced?
- Is the controller serviceable?
- Is technical documentation available?
- Is a pump curve provided?
- Can replacement components be supplied?
- Is troubleshooting support available?
For EPC contractors and agricultural projects, keeping critical spare parts on site can reduce downtime.
Cheap Equipment Can Become Expensive After Installation
Consider two hypothetical systems.
Illustrative System A
Lower initial equipment price.
However:
- Pump operates inefficiently at the required head
- Pipeline is undersized
- Additional panels are eventually required
- Water delivery is lower than expected
- Pump needs replacement earlier
Illustrative System B
Slightly higher initial equipment price.
But:
- Pump is selected at the correct duty point
- Pipeline losses are calculated properly
- Solar array is correctly configured
- Protection devices are included
- Required daily water volume is achieved
System B may provide better total project economics even though its initial quotation is higher.
This is why professional buyers should consider Total Cost of Ownership, not only purchase price.
What Should You Compare Between Solar Pump Quotations?
When evaluating different quotations, compare the following:
Hydraulic Performance
- Required flow
- Required head
- Pump performance curve
- Efficiency at the duty point
Pump
- Pump type
- Motor power
- Materials
- Voltage
- Frequency
- Protection rating
Solar System
- Total PV capacity
- Panel wattage
- Panel voltage configuration
- Controller/inverter specification
Pipeline
- Pipe diameter
- Pipe length
- Calculated friction losses
- Required valves and fittings
Protection
- Dry-run protection
- Low-water protection
- Overload protection
- Tank-level control
Documentation
- Pump performance curve
- Technical datasheet
- Installation manual
- Electrical information
Support
- Warranty
- Spare parts
- Technical assistance
- Replacement component availability
Only after comparing these factors does it make sense to compare the final price.
Questions to Ask Before Accepting the Cheapest Quotation
Before choosing the lowest-priced system, ask the supplier:
1. What flow will the pump deliver at my actual total head?
2. Can you provide the pump performance curve?
3. How did you calculate the required solar panel capacity?
4. What is the controller's operating voltage range?
5. Does the system include dry-run and overload protection?
6. Have pipeline friction losses been included?
7. What daily water volume can I reasonably expect?
8. Which pump components are replaceable?
9. Are spare parts available?
10. What information is included in the warranty?
If these questions cannot be answered clearly, the lowest quotation may not be the lowest-cost solution.
What Information Should You Send for an Accurate Quotation?
For a more accurate solar irrigation pump selection, provide:
- Application
- Irrigation area
- Crop type, if known
- Required daily water volume
- Required flow rate, if known
- Water source
- Well depth
- Static and dynamic water level, if known
- Vertical lifting height
- Horizontal pumping distance
- Total pipe length
- Pipe diameter
- Required outlet pressure
- Water quality
- Installation location
- Available grid or generator power, if any
If some information is unknown, provide as much site information as possible rather than guessing the pump size.
Compare the complete system
The cheapest pump is not necessarily the cheapest solar irrigation solution.
A successful system needs to match:
Water Demand → Flow → Head → Pump → Controller → Solar Panels → Pipeline → Irrigation System
The objective is not simply to minimize the purchase price of one component.
The objective is to deliver the required amount of water reliably, efficiently and economically over the life of the project.
