What Is a Solar Water Pump and How Does It Work?
Solar water pumps are increasingly used for agricultural irrigation, livestock watering, boreholes, remote water supply and other applications where grid electricity is unavailable, unreliable or expensive.
But how does a solar water pumping system actually work, and what should you consider before choosing one?
This guide explains the basic components and operating principles of a solar water pump system.
What Is a Solar Water Pump?
A solar water pump is a pumping system that uses electricity generated by photovoltaic (PV) solar panels to operate a water pump.
Instead of relying entirely on grid electricity or a diesel generator, solar panels convert sunlight into electrical energy that powers the pumping system.
A typical system may include:
- Solar panels
- Solar pump controller or inverter
- Water pump
- Cables
- Water pipes
- Water level sensors
- Protection devices
- Mounting structure
- Water storage tank or reservoir
Depending on the application, the pump can be either a submersible pump installed inside a well or a surface pump installed above the water source.
How Does a Solar Water Pump Work?
The operating principle is relatively simple.
Solar Panels Generate Electricity
Solar panels capture sunlight and convert it into DC electrical power.
The available power varies depending on solar radiation, panel capacity, temperature and installation conditions.
The Controller Manages the Power
Electricity from the solar panels is supplied to a solar pump controller or solar inverter.
The controller helps regulate the power delivered to the pump motor.
Depending on the system design, it may also provide protection against conditions such as:
- Dry running
- Overvoltage
- Undervoltage
- Motor overload
- Low water level
- Tank overflow
For AC pump systems, a solar pumping inverter can convert the DC electricity produced by the solar panels into the electrical supply required by the pump motor.
The Pump Moves the Water
The pump draws or pushes water from the source to the required destination.
Typical water sources include:
- Boreholes
- Deep wells
- Rivers
- Lakes
- Ponds
- Reservoirs
- Water tanks
The water can then be delivered to irrigation systems, storage tanks, livestock facilities or other water supply systems.

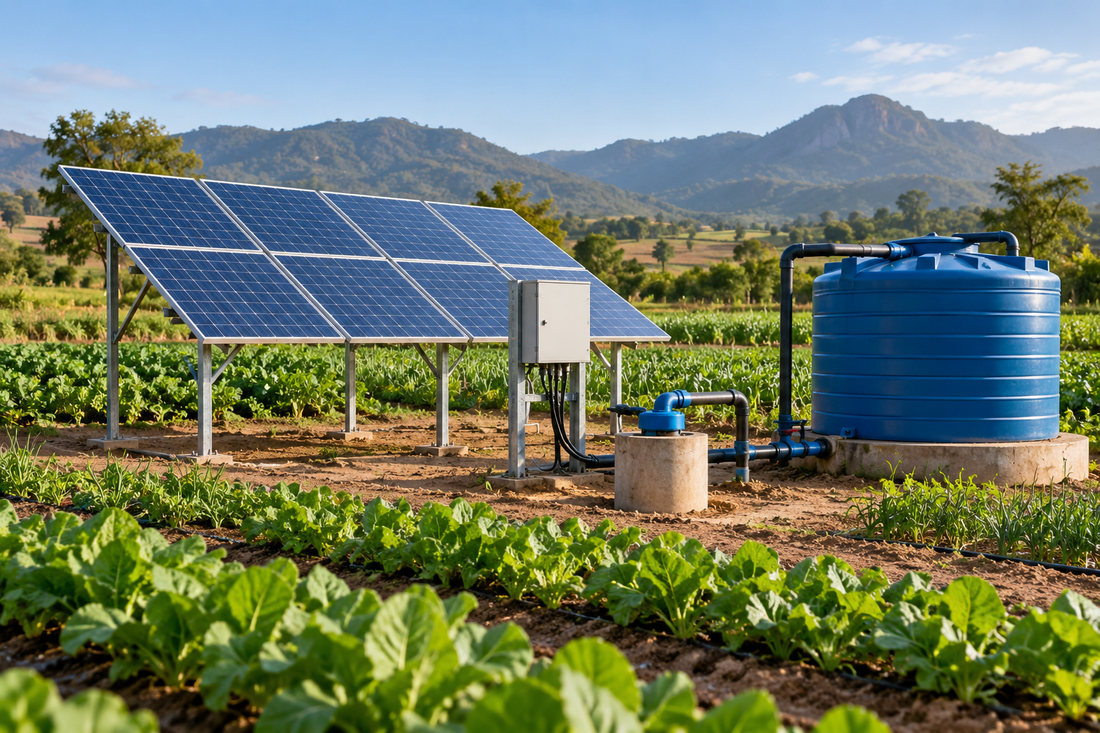

From sunlight to stored water
Submersible vs. Surface Solar Pumps
Choosing the correct pump type depends largely on the water source.
Solar Submersible Pumps
A submersible pump operates underwater and is commonly used for:
- Boreholes
- Deep wells
- Groundwater extraction
- Agricultural irrigation
- Remote water supply
For deep wells, the pump must be selected according to the well depth, water level, required flow and total dynamic head.
Solar Surface Pumps
Surface pumps are installed outside the water source.
They are commonly used for:
- Rivers
- Ponds
- Reservoirs
- Shallow wells
- Water transfer
- Irrigation systems
The suction conditions are especially important when selecting a surface pump.
What Determines the Correct Solar Pump Size?
Choosing a solar pump based only on motor power or pipe diameter can lead to poor system performance.
The main parameters should include:
Required Flow Rate
Flow rate tells us how much water the system needs to deliver.
It is normally expressed in:
- m³/h
- L/min
- L/s
For agricultural irrigation, the required flow should be calculated according to crop water demand, irrigation area and daily pumping time.
Total Dynamic Head
Head represents the pressure or vertical lifting requirement that the pump must overcome.
It is not simply the depth of the well.
A proper calculation should consider:
Total Head = Vertical Lift + Required Outlet Pressure + Pipe Friction Losses
Long pipelines, small pipe diameters, valves and fittings can significantly increase system resistance.
Water Source
The supplier should know whether the water comes from a:
- Borehole
- Well
- River
- Pond
- Reservoir
- Tank
For borehole applications, well diameter and dynamic water level are also important.
Solar Conditions
The available solar radiation affects how much electricity the PV array can produce.
Solar panel capacity therefore needs to be matched correctly with the pump motor and controller.
Why Is Correct System Matching Important?
A solar pumping system is more than a pump connected to several solar panels.
The pump, motor, controller, solar array, pipeline and water demand need to work together as one system.
An incorrectly designed system may result in:
- Insufficient water flow
- Inadequate pressure
- Excessive solar panel requirements
- Poor performance during weaker sunlight
- Frequent controller faults
- Pump dry running
- Higher installation costs
- Reduced equipment life
This is why comparing two solar pumping systems based only on pump price can be misleading.
A lower-cost pump that operates far from its efficient duty point may ultimately result in a more expensive or less reliable system.
What Information Should You Provide Before Selecting a Solar Pump?
Before requesting a quotation, prepare the following information:
- Application — irrigation, livestock, water supply, etc.
- Water source — borehole, river, pond or reservoir
- Required flow rate (m³/h)
- Vertical lifting height
- Horizontal pumping distance
- Total pipe length
- Pipe diameter
- Water condition
- Well depth and well diameter, if applicable
- Installation country or location
If the exact required flow is unknown, information about the irrigation area, crop type and required daily water volume can help determine an appropriate starting point.
Can Solar Pumps Work Without Batteries?
Yes.
Many agricultural solar pumping systems operate directly from solar panels during daylight hours without batteries.
Instead of storing electricity in batteries, water can be pumped into a storage tank or reservoir during the day and stored for later use.
This can simplify the system and reduce battery-related maintenance.
Whether battery storage is necessary depends on the required operating schedule and application.
Applications of Solar Water Pumps
Solar pumping systems can be used for:
- Agricultural irrigation
- Rice fields
- Vegetable farms
- Orchards
- Livestock watering
- Borehole water extraction
- Rural water supply
- Water storage tanks
- Remote farms
- Off-grid water projects
Continue your research
Technical references
For further reading, see Grundfos solar water pumping sizing guidance and FAO guidance on solar irrigation benefits and planning considerations.
